User manual

  • For use with Shark, we recommend using posts with a diameter of 8-18 mm!

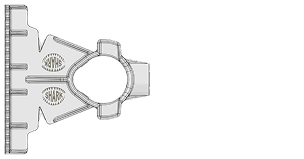

  • The plastic part of Shark is recyclable plastic (PP) waste without threaded nuts.

  • The clamping screw can be reused for other purposes after the device has been destroyed or worn out.

  • The packaging is recyclable paper waste. It can also be reused for other storage purposes.

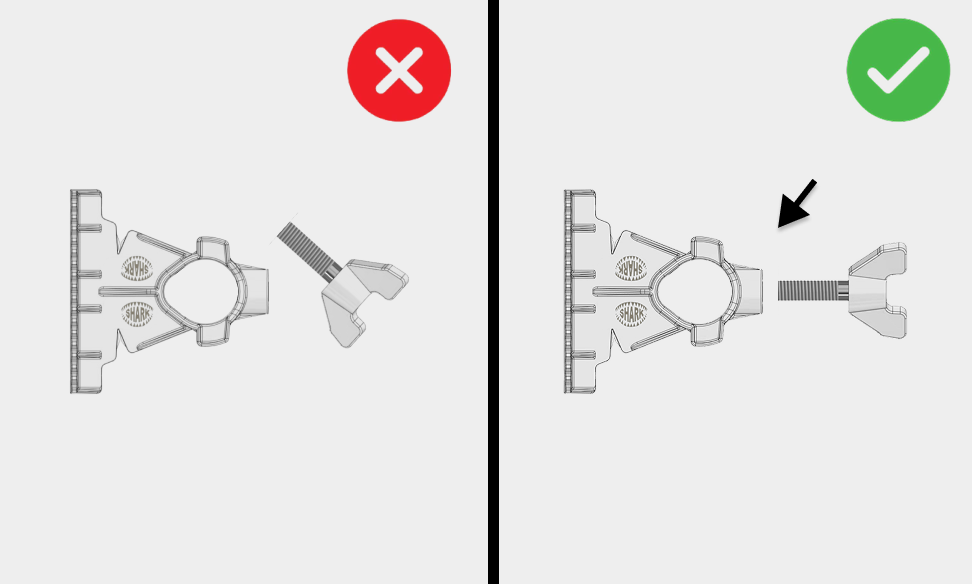

The screw must be inserted into the threaded section at the rear as shown in the diagram on the right. Then turn it clockwise to screw it in.

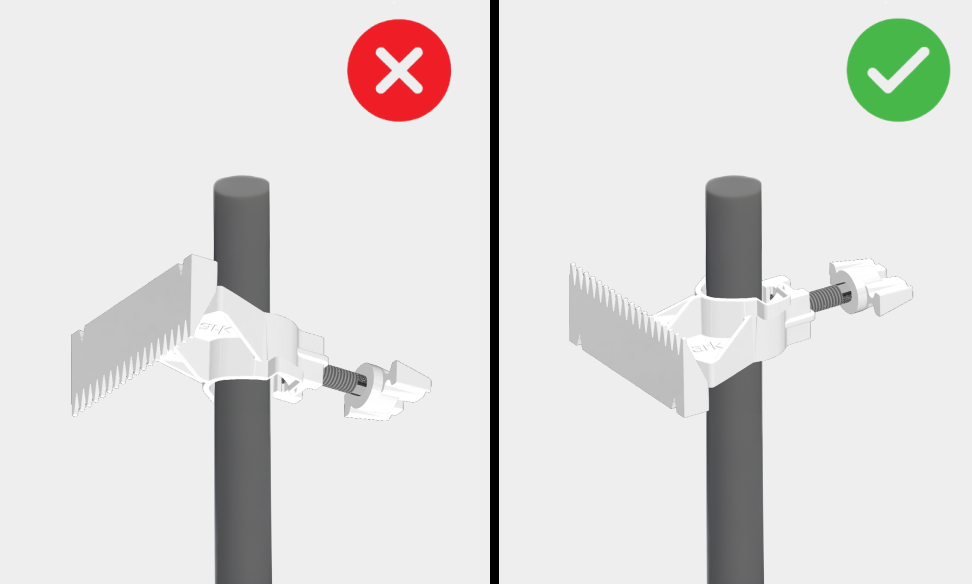

The Shark cord leveler must be placed on the column as shown in the figure on the right. It is important that the dense teeth of the front part face upwards for proper operation.

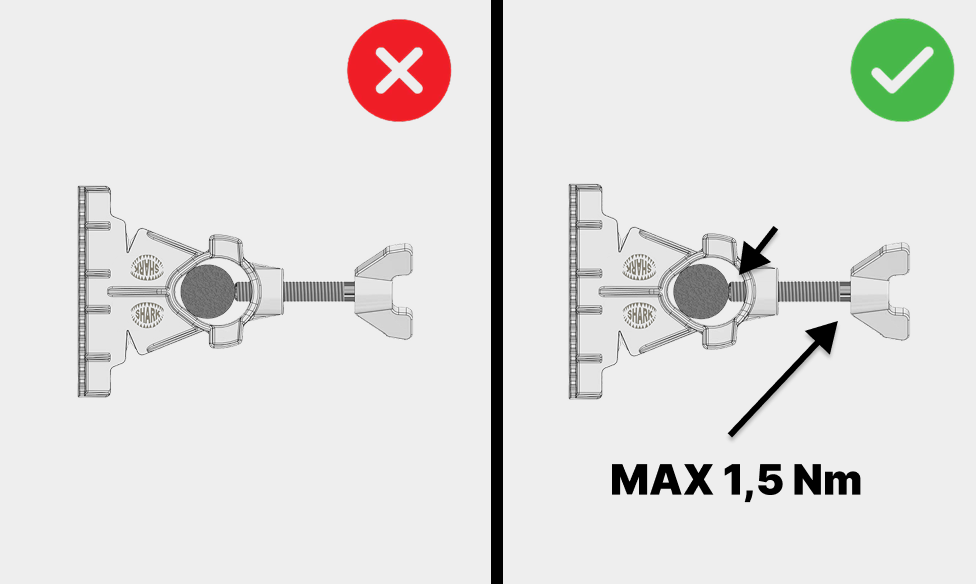

When tightening to the column, the maximum tightening torque for the fastening screw is approx. 1.5 Nm.

After installing the Shark line leveler, the screw can be loosened to move it along the column. To move the line sideways, there is no need to loosen the screw; simply slide the line along the upward-facing teeth!

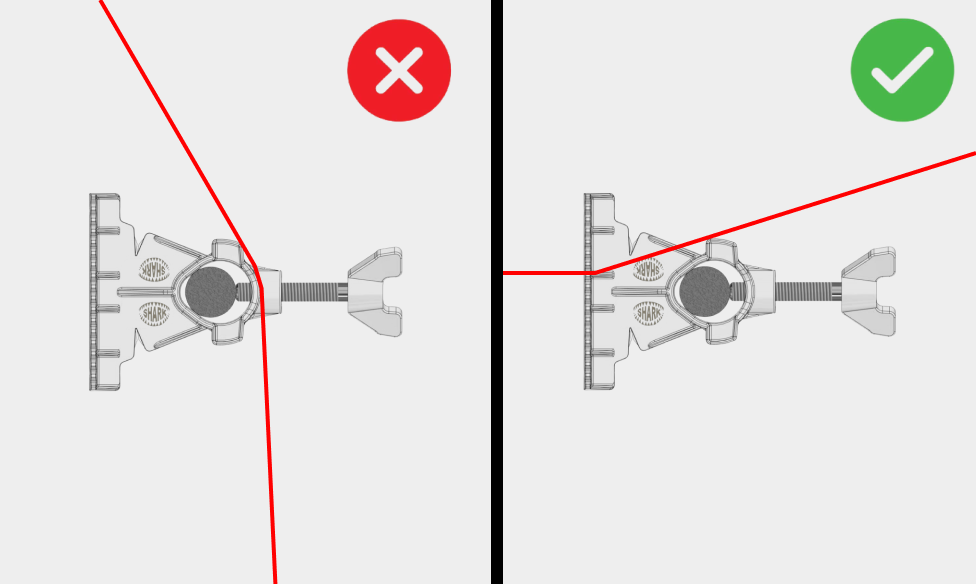

On the Shark line leveler attached to the column, the line must first be passed through the teeth formed on the front section, as shown in the figure on the right.

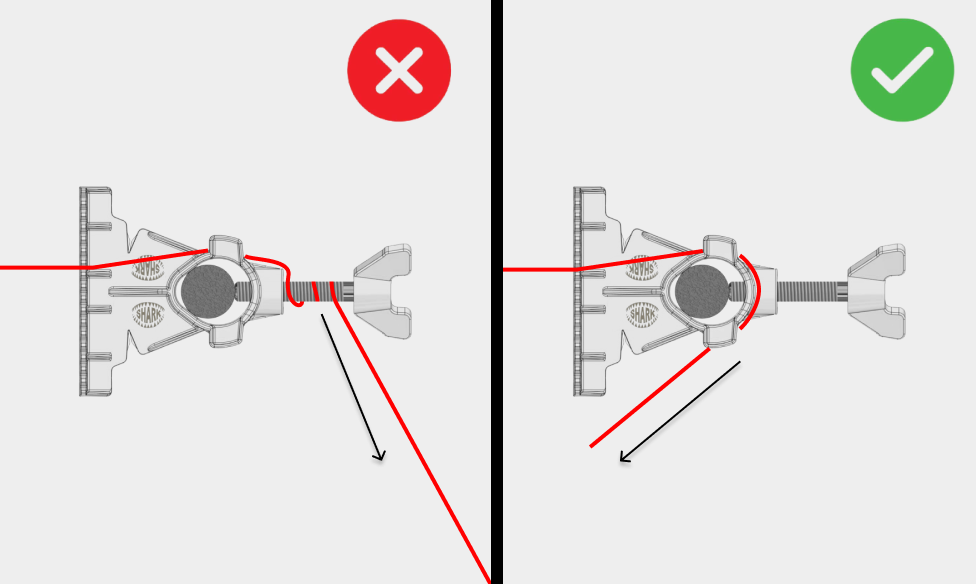

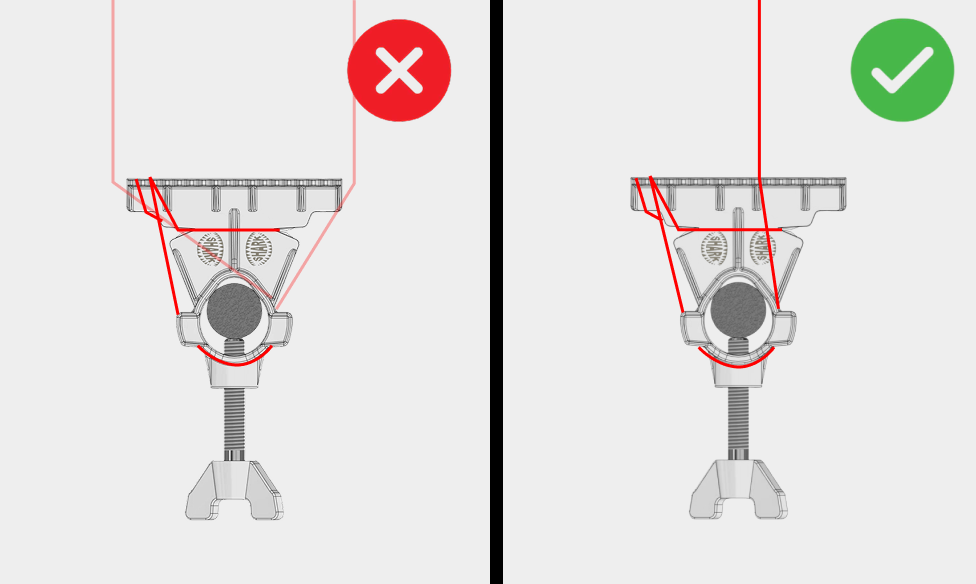

It must then be routed under the hanging tabs formed around the column. It is important that it is routed under the hanging tabs but above the threaded part, as shown in the figure on the right! Avoid winding the cord around the clamping screw!

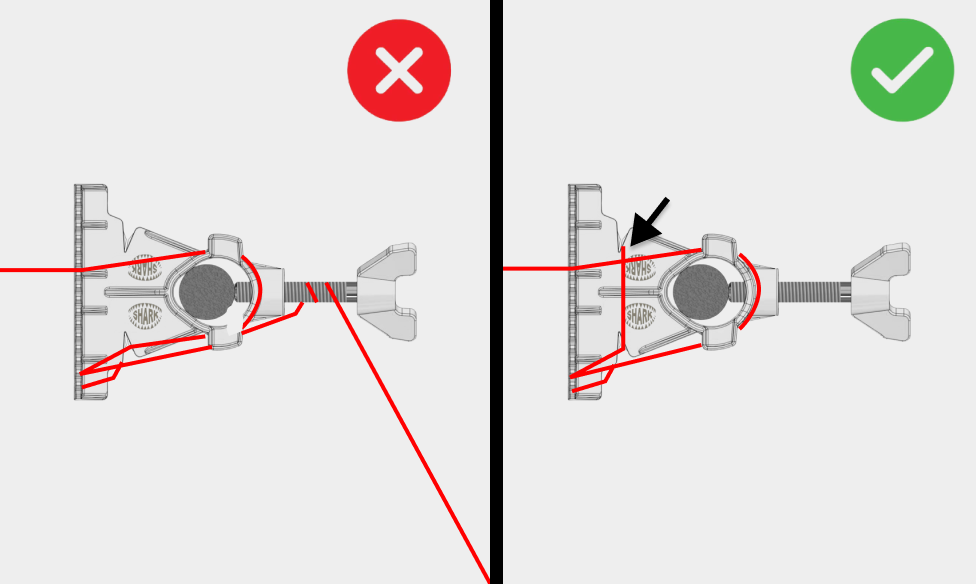

Then pull the cord again through the serrated section at the front of the Shark. Here, as shown in the illustration on the right, push it through the upper teeth into one of the grooves at the bottom.

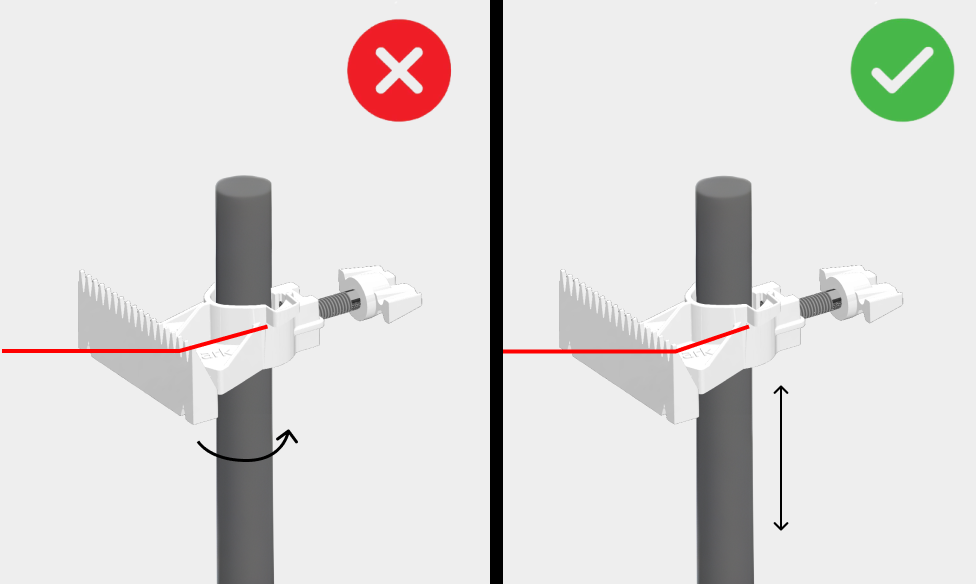

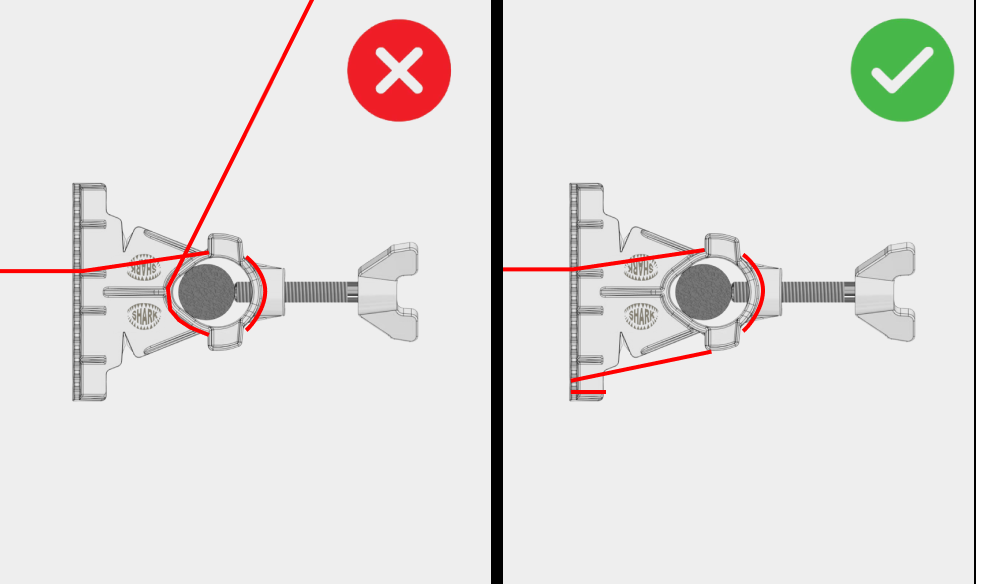

To ensure that the cord remains in the correct position in the first section, it is advisable to press the cord into the grooves on the side of the Shark. To do this, wrap the cord around the middle section! This will prevent the cord from moving upwards.

Once the cord is secured, it can be easily moved sideways by stepping between the teeth. There is no need to loosen the screw.
